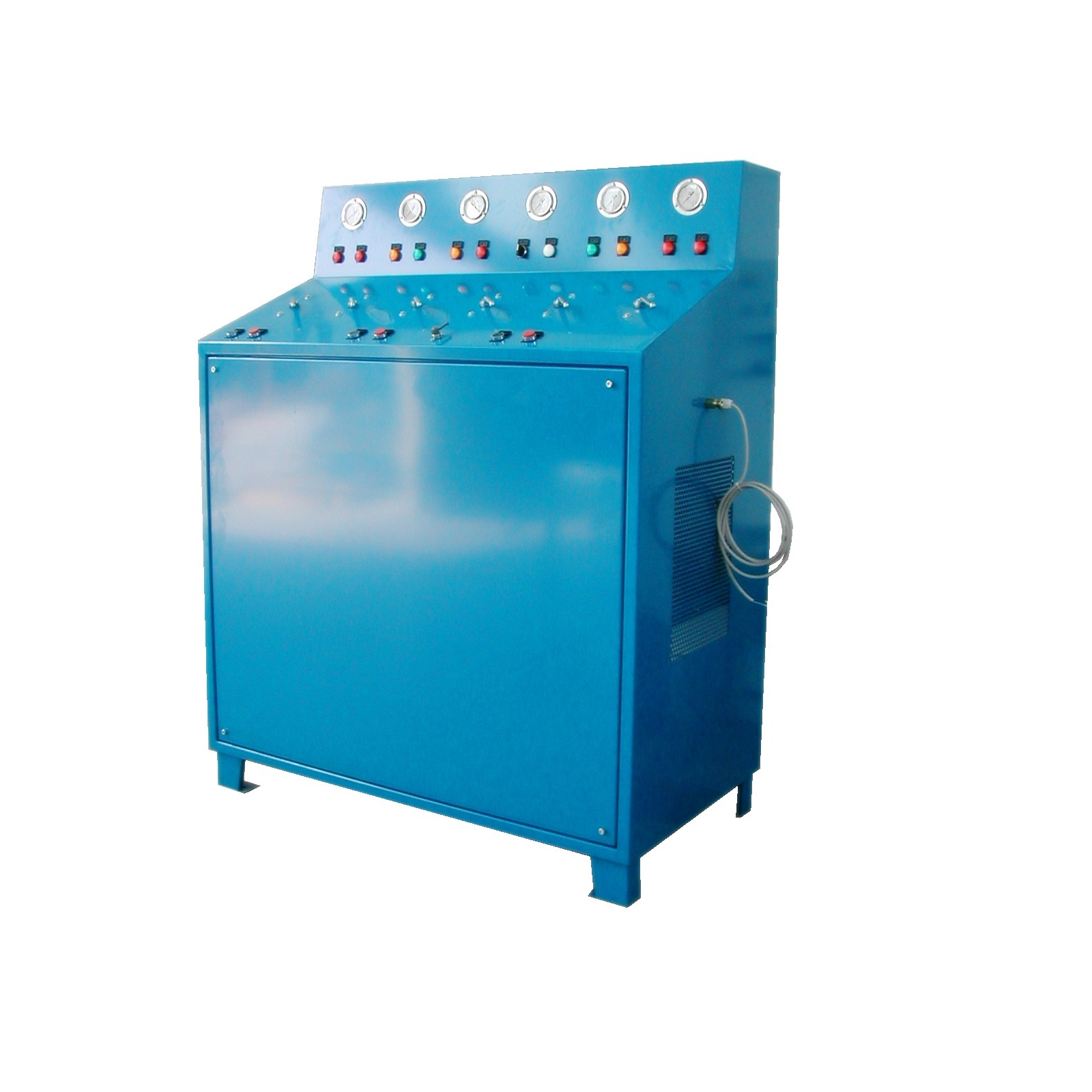

100/103FM FM200 filling and recovery

100/103FM-FM200 and Clean Agent filling and recovery

Suitable to handle the FM200 or the HFC227 and the most common Clean Agents in the most efficient way, the 100/103FM unit consists of two separate sections.



Categories , Tags , , ,

Description

 The maximum pressure of 60 bar Gases: FE36 , Halotron , FM200 , Novec1230 , HFC227ea , HFC125.Depending from the version. Suitable to handle the FM200TM or the HFC227 and the most common Clean Agents in the most efficient way, the 100/103FM unit consists of two separate sections. The first section pumps the product in liquid phase from source tank to cylinder allowing the pressurization with nitrogen at 24 or 42 bar in a single sequential operation. The second section allows recovering and re-utilizing the residual vapor product, remaining in gas phase inside the source tank.

 Advantages

100/103FM is a very highly efficient unit, since it is possible to transfer and recover the FM200TM and the most common Clean Agents (Halon alternatives) using a single unit. Seeing that it is able to recover the maximum amount of product from the source tank, this unit is also extremely cost effective.
